MINI Automatic Chemiluminescence Immunoassay Analyzer

Short Description:

The MINI Automatic Chemiluminescence Immunoassay Analyzer is a cutting-edge diagnostic instrument that combines precision, speed, and accuracy. This analyzer provides innovative solutions to diagnosing diseases and detecting abnormal biomarkers in patients. The system uses modern chemiluminescent technology for detection, which ensures more sensitive and specific results. With its highly automated design, the analyzer reduces test time and saves labor costs. Additionally, the MINI analyzer features a user-friendly operating system that allows for convenient and efficient use. Its compact size also makes it easy to install and move between different laboratories or locations. Overall, the MINI Automatic Chemiluminescence Immunoassay Analyzer ensures efficient and reliable diagnostic testing, making it an essential tool for healthcare professionals in various industries.

Product Detail


Product Tags

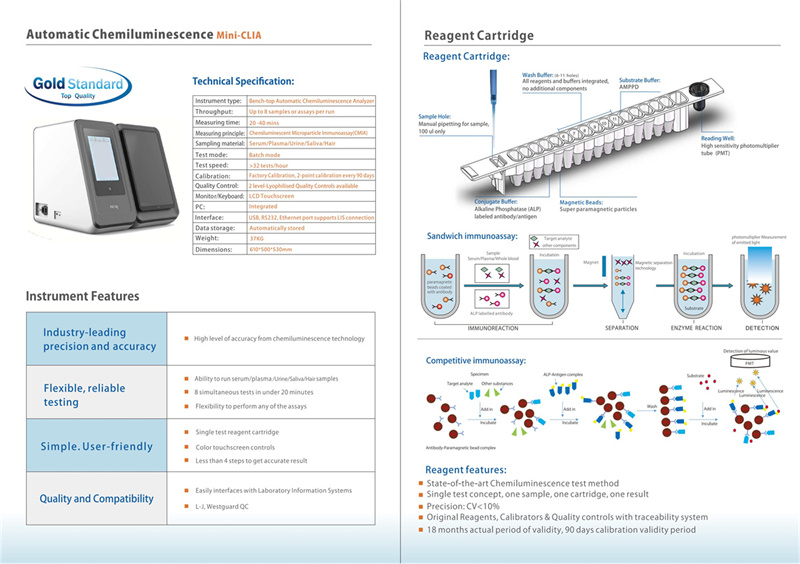

Technical Specification:

Instrument type Bench-top Automatic Chemiluminescence Analyzer
Throughput Up to 8 samples or assays per run
Measuring time 20-40 mins
Measuring principle Chemiluminescent Microparticle Immunoassay(CMA)
Sampling material Serum/Plasma
Test mode Batch mode
Test speed >32 tests/hour
Calibration Factory Calibration, 2-point calibration every 90 days
Quality Control 2 level-Lyophilised Quality Controls available
Monitor/Keyboard LCD Touchscreen
PC Integrated
Interface USB, RS232, Ethernet port supports LIS connection
Data storage Automatically stored
Weight 25KGS
Dimensions 525*480*530mm

Instrument Features:

Industry-leading precision and accuracy 1.High level of accuracy from chemiluminescence technology
Flexible, reliable testing 1.Ability to run serum/plasma samples2.8simultaneous tests in under 20 minutes3.Flexibility to perform any of the assays
Simple.User-friendly 1.Single test reagent cartridge2.Color touchscreen controls3.Less than 4 steps to get accurate result
Quality and Compatibility 1.Easily interfaces with Laboratory Information Systems2.L-J, Westguard QC
